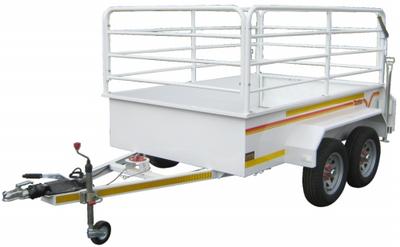

2.4m 1 ton Flatdeck Tandem with rails and brakes



2.4m 1 ton Flatdeck Tandem with rails and brakes

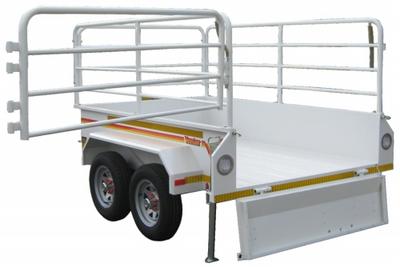

Back view open

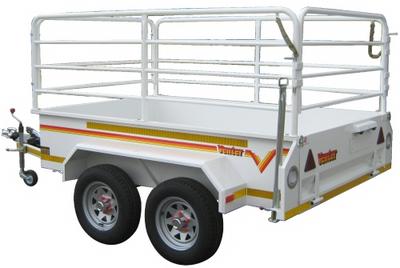

Back left view





2.4m 1 ton Flatdeck Tandem with rails and brakes

Including spare wheel 165×13 inch

Dimensions
A Height (over all) 1700 mm
B Height (side) 1200 mm
C Length (body) 2400 mm
D Length (over all) 3850 mm
E Width (inside) 1520 mm
F Width (over all) 2010 mm
G Ground Clearance 245 mm
Technical Info
Tare Mass 550 kg
GVM 2550 kg
Pay Load 2000 kg
Brakes Run-in brakes
Axle Length 1830 mm x2
Axle Capacity 1500 kg x 2
Leaf Springs Rubber axle
Wheels 195 x 14 inch 6 stud

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
