6 Dog Trailer



6 Dog Trailer

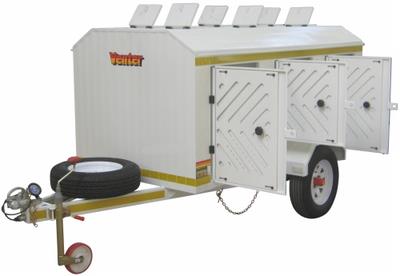

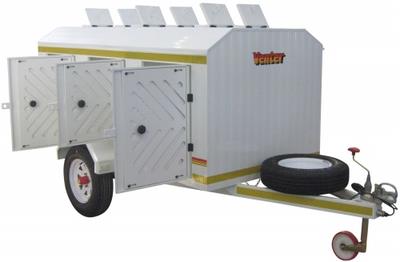

front left view open

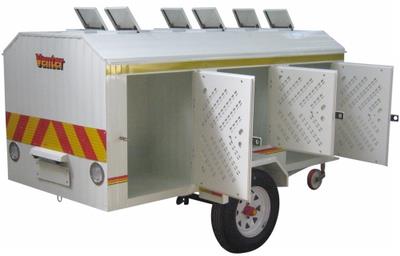

Back left view open

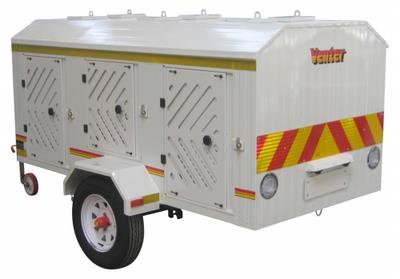

Back right view closed

Back left view closed

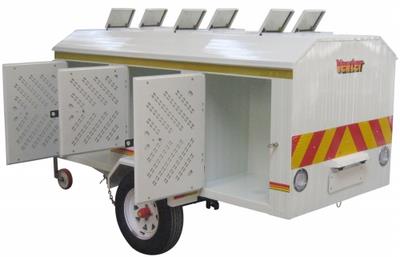

Back right view open

Front right view open

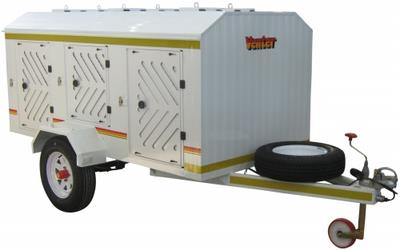

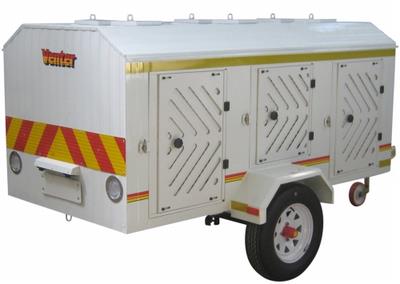

Front right view closed

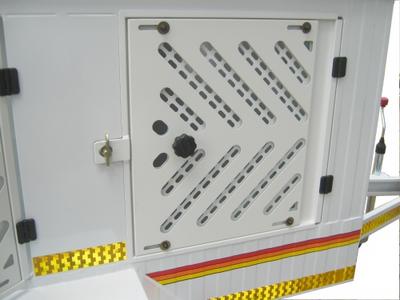

Door closed

Door open

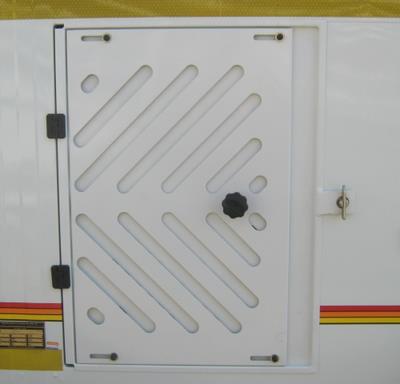

Door vent closed

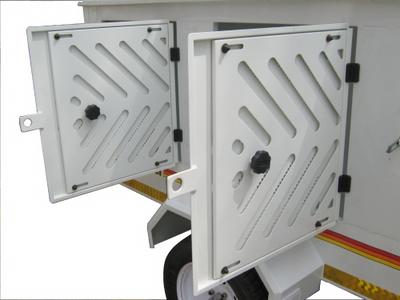

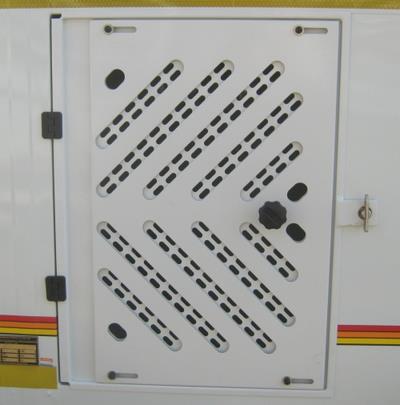

Door vent open

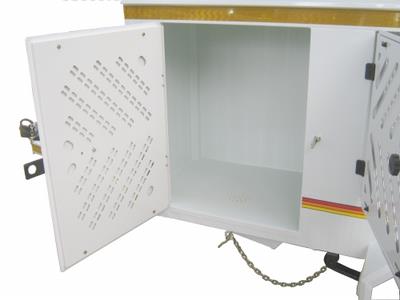

Easy access door opening

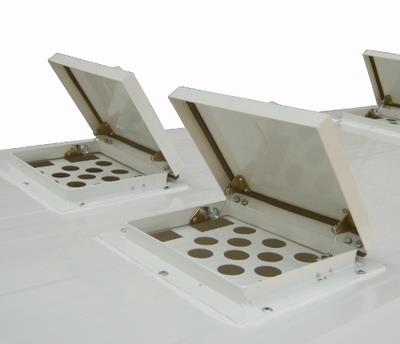

Air vents with screens

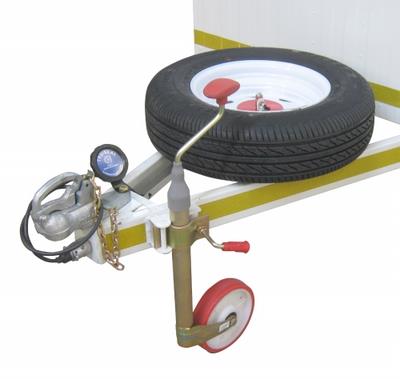

Coupler and jockey wheel





Features

• Perfectly balanced, yet light weight and durable.
• Body constructed from 0.9 mm corrosion resistant rigidised zinc galvanized sheet steel.
• Dogs are seperated by partitions.
• Each compartment is fitted with a mesh hole in the floor for cleaning.
• Six doors that are pad-lockable.
• Adjustable sliding vents on doors to protect the animal from wind, sun and rain.
• Sides are strengthened by formed top-hat sections which prevents drumming and vibration.
• Multi-function LED lights
• Weather-proof sprung roof-mounted air vents, with screens to prevent dogs pushing through opening
• Pad-lockable front mounted spare wheel bracket
• Steel numberplate mounting panel
• Robust numberplate light
• Ajustable jockey wheel
• Coated cast alloy door hinges
• Including spare wheel 165x13inch

Dimensions
A Height (over all) 1510 mm
B Height (side) 1040 mm
C Length (body) 2400 mm
D Length (over all) 3490 mm
E Width (inside) 1170 mm
F Width (over all) 1645 mm
G Ground Clearance 255 mm
Technical Info
Tare Mass 300 kg
GVM 700 kg
Pay Load 400 kg
Brakes No Brakes
Axle Length 1450 mm
Axle Capacity 750 kg
Leaf Springs 6 Blade
Wheels 165 x 13

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
