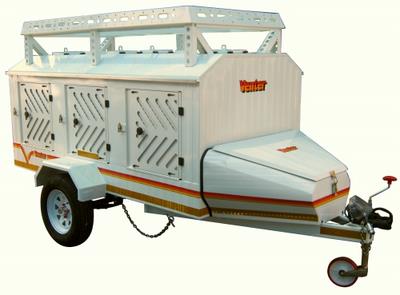

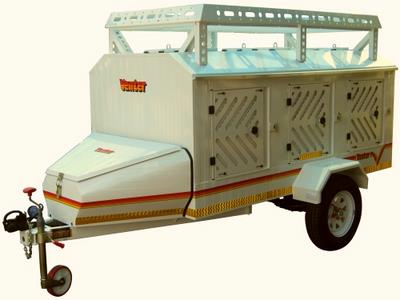

Front right view
|
|
 |
|

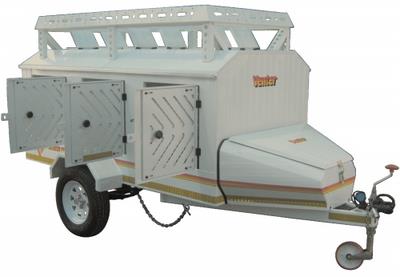

Right front view open
|
|
 |
|

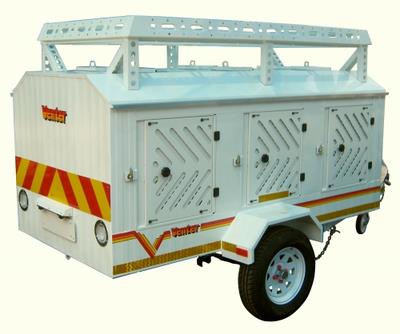

Back view
|
|
 |
|

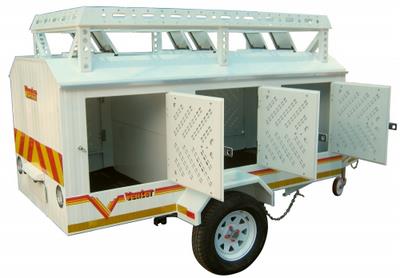

Back view open
|
|
|
|
|
|
Features
• Perfectly balanced, yet light weight and durable.
• Body constructed from 0.9 mm corrosion resistant rigidised electro galvanized sheet steel.
• Dogs are separated by partitions.
• Each compartment is fitted with a mesh hole for cleaning.
• Six doors that are pad-lockable.
• Six adjustable sliding doors to protect the animal from wind, sun and rain.
• Sides are strengthened by formed top-hat sections which prevents drumming and vibration.
• Multi-function LED lights
• Weather-proof sprung roof-mounted air vents (trailer can be supplied without roof vents)
• Pad-lockable front mounted spare wheel bracket
• Steel number plate mounting panel
• Robust number plate light
• Adjustable jockey wheel
• Coated cast alloy door hinges
• Including spare wheel 165x13inch
• Steel roof rack (2124x999x380mm) with clearance for opening roof vents
• Luggage nosecone for extra storage space
|
|
|
| Dimensions |
| A |
Height (over all) |
1510 mm |
| B |
Height (side) |
1040 mm |
| C |
Length (body) |
2400 mm |
| D |
Length (over all) |
3490 mm |
| E |
Width (inside) |
1170 mm |
| F |
Width (over all) |
1645 mm |
| G |
Ground Clearance |
255 mm |
| Technical Info |
| Tare Mass |
300 kg |
| GVM |
700 kg |
| Pay Load |
400 kg |
| Brakes |
No brakes |
| Axle Length |
1450 mm |
| Axle Capacity |
750 kg |
| Leaf Springs |
6 Blade 36 inch |
| Wheels |
165 x 13 inch |
|
| |
| Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice. |
