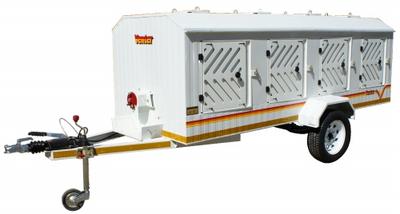

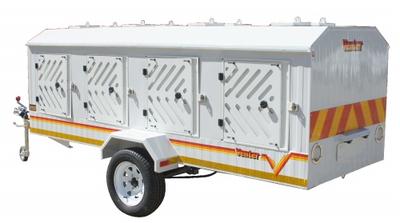

8 Dog Trailer (braked)



8 Dog Trailer (braked)

Back view closed

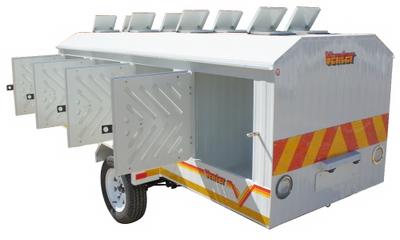

Back view open

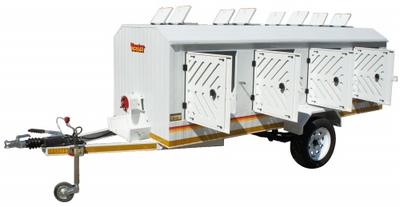

Front view open

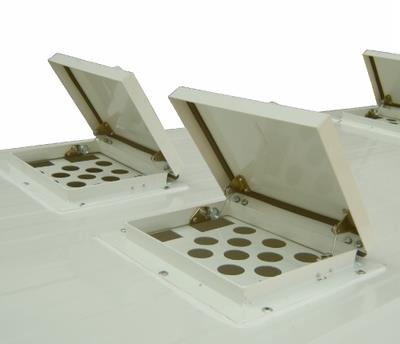

Air vents with mesh

Door closed

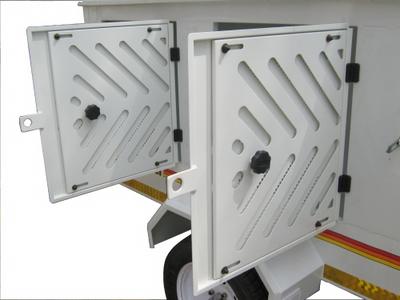

Door open

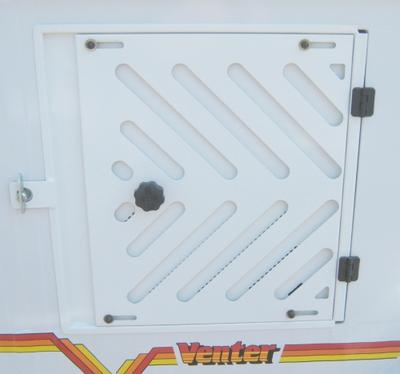

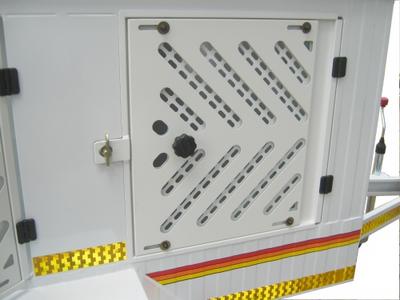

Door vents closed

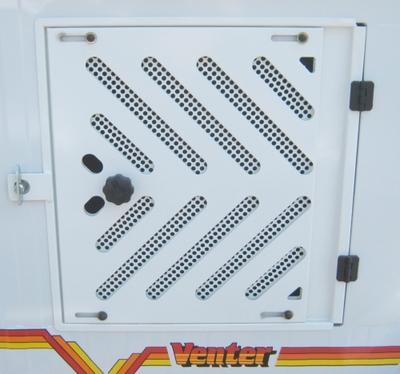

Door vents open

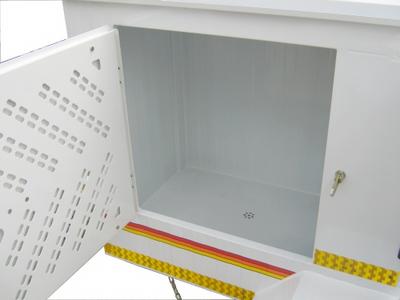

Dog compartment

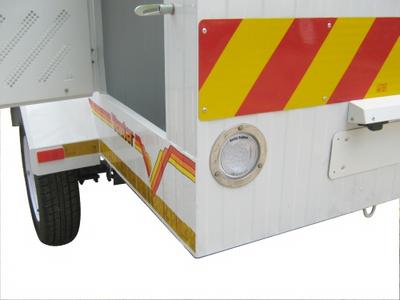

LED multi-function light

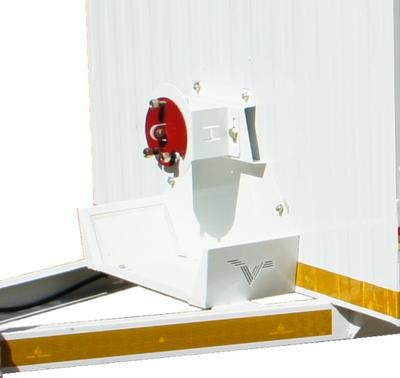

Spare wheel bracket without wheel

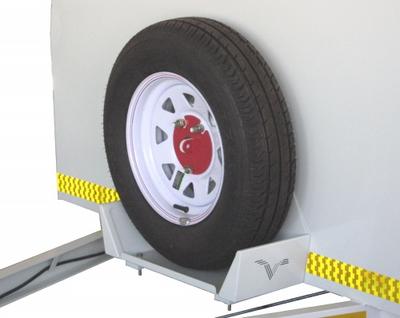

Spare wheel bracket





Features

• Perfectly balanced, yet light weight and durable.
• Body constructed from 0.9 mm corrosion resistant rigidised electro galvanized sheet steel.
• Dogs are seperated by partitions.
• Each compartment is fitted with a mesh hole for cleaning.
• Eight doors that are pad-lockable.
• Eight adjustable sliding doors to protect the animal from wind, sun and rain.
• Sides are strengthened by formed top-hat sections which prevents drumming and vibration.
• Multi-fucntion LED lights
• Weather-proof sprung roof-mounted air vents (trailer can be supplied without roof vents)
• Pad-lockable front mounted spare wheel bracket
• Steel numberplate mounting panel
• Robust numberplate light
• Ajustable jockey wheel
• Coated cast alloy door hinges
• Including spare wheel 195x14inch

Dimensions
A Height (over all) 1530 mm
B Height (side) 1040 mm
C Length (body) 3190 mm
D Length (over all) 4180 mm
E Width (inside) 1175 mm
F Width (over all) 1645 mm
G Ground Clearance 255 mm
Technical Info
Tare Mass 420 kg
GVM 750 kg
Pay Load 330 kg
Brakes With brakes
Axle Length 1450 mm
Axle Capacity 1250 kg
Leaf Springs 8 Blade
Wheels 195 x 14 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
