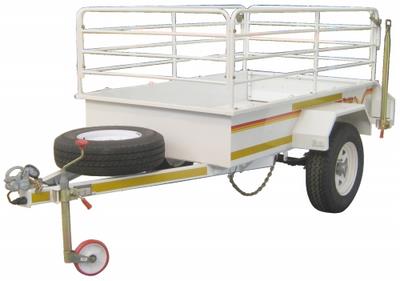

Flatdeck 1/2 ton 14 inch with rails (unbraked)



Flatdeck 1/2 ton 14 inch with rails (unbraked)

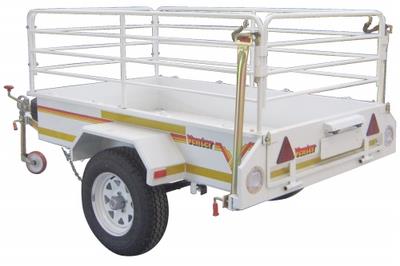

Back left view

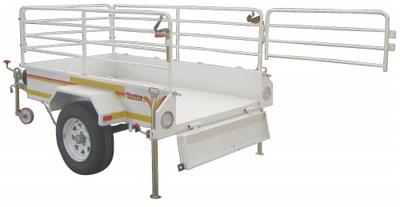

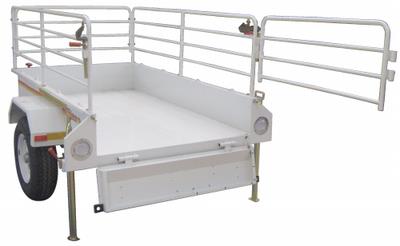

Back left view open

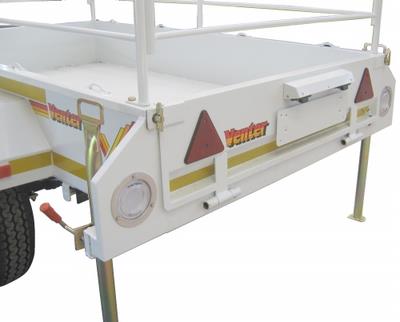

Back view open

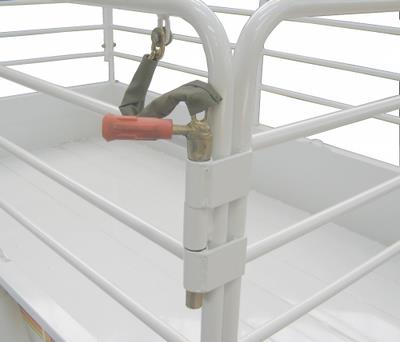

Back rail detail

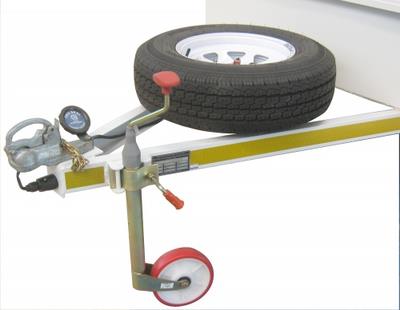

Jockey wheel and spare wheel

Tailgate detail

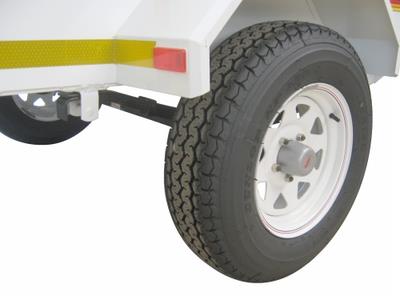

14 inch wheel

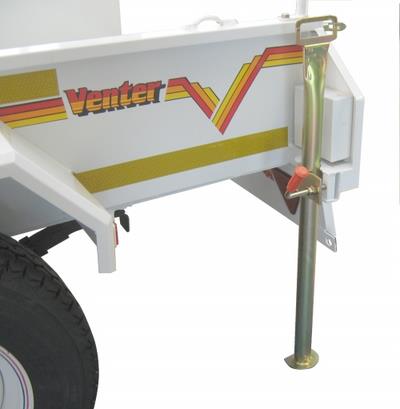

Support leg down

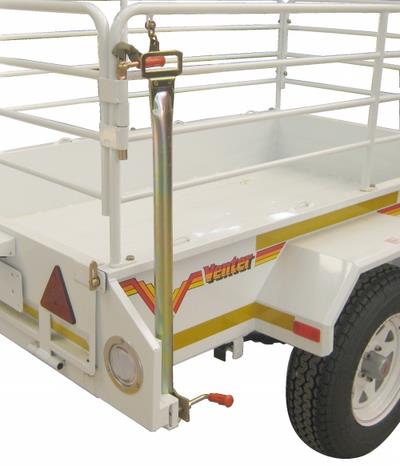

Support leg up



1. Superb for transportion of bulky heavy weight goods.
2. A well balanced, multi purpose, heavy duty trailer. Durable, yet light for towing.
3. Body constructed from 1.6mm corrosion resistant electro galvanized sheet steel.
4. Floor constructed from 1.6 mm corrosion resistant electro galvanized sheet steel.
6. Superb for transportion of bulky heavy weight goods.
7. Tailgate folds down to facilitate loading.
8. Including spare wheel 195×14 inch

Dimensions
A Height (over all) 1400mm
C Length (body) 2060mm
D Length (over all) 3000mm
E Width (inside) 1200mm
F Width (over all) 1670mm
G Ground Clearance 205mm
B Height (body) 870mm
Technical Info
Tare Mass 270kg
GVM 700kg
Pay Load 430kg
Brakes No brakes
Axle Length 1450mm
Axle Capacity 1250kg
Leaf Springs 8 Blade
Wheels 195 x 14 inch 5 stud

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
