Flatdeck 3.0m with Rails



Flatdeck 3.0m with Rails

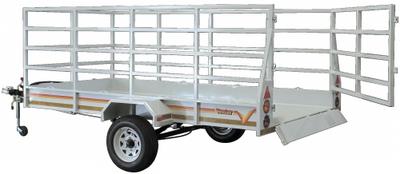

Back left view open

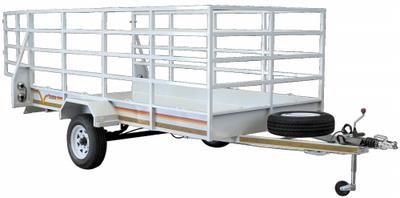

Front right view



Flatdeck with high square section rails



Dimensions
A Height (over all) 2000 mm
B Height (side) 1280 mm
C Length (body) 3000 mm
D Length (over all) 4220 mm
E Width (inside) 1700 mm
F Width (over all) 2260 mm
G Ground Clearance 245 mm
Technical Info
Tare Mass 480 kg
GVM 1600 kg
Pay Load 1000 kg
Brakes Run-in brakes
Axle Length 1830 mm
Axle Capacity 1800 kg
Leaf Springs 12 Blade
Wheels 195 x 14 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
