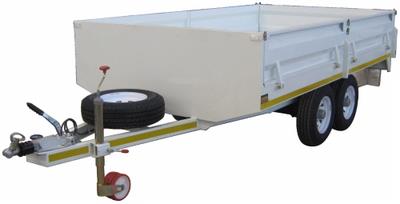

Flatdeck tandem dropside 3 m



Flatdeck tandem dropside 3 m

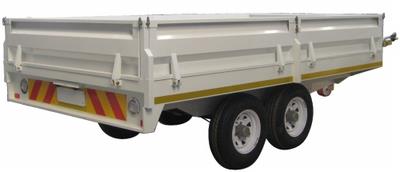

Right back view

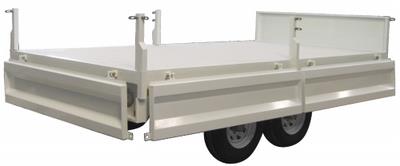

Right back view sides down

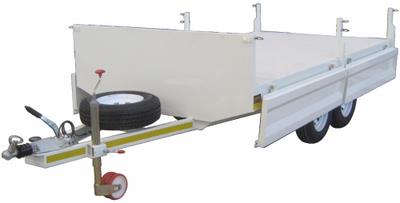

Right front view side down

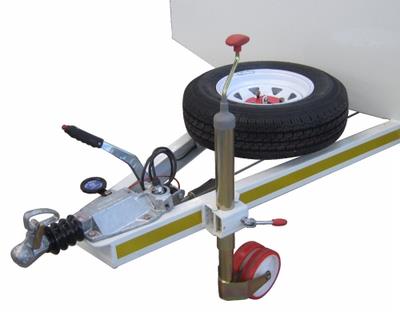

Coupler and jockey wheel

Dropside hinge

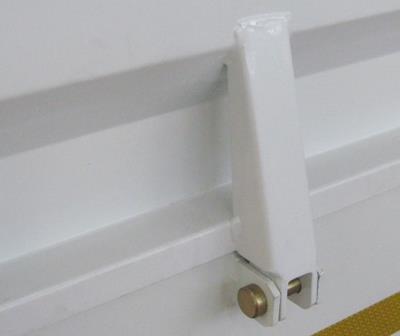

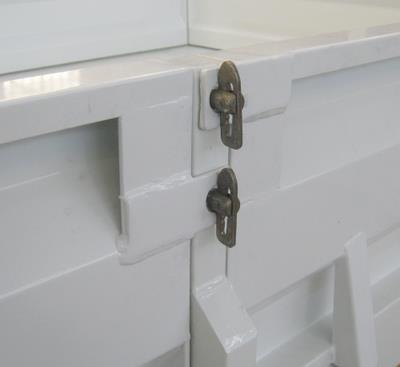

Dropside catches

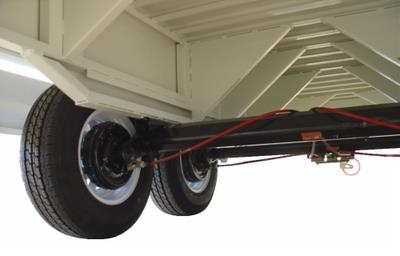

Tandem axles

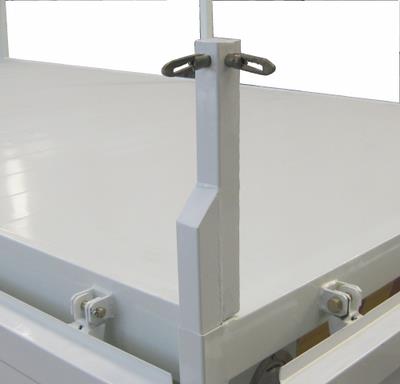

Vertical corner support

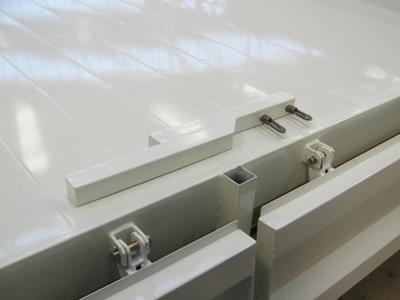

Vertical corner support removed

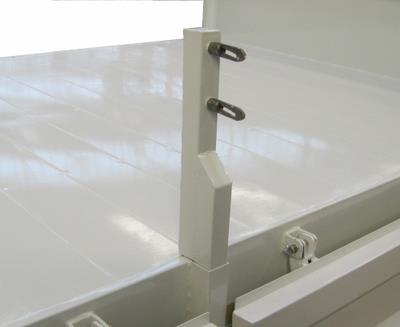

Vertical centre support

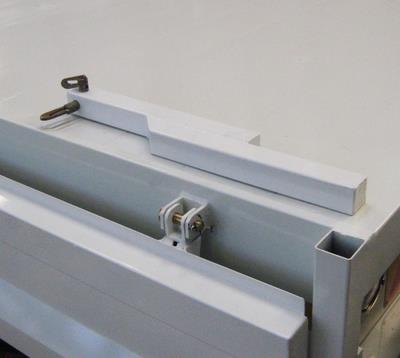

Vertical centre support removed



Flatdeck 3.0m dropsides

This heavy-duty trailer is ideal for the transport of heavy items, in agricultural and industrial sectors.

Features

• Dropsides on three sides
• Dropside vertical support are removable for easy access
• Heavy-duty dropside hinges
• Tandem axles each with 2000kg load capacity
• Brakes assisted by additional booster
• Five stud 14 inch wheels
• Spare wheel bracket front mounted on A-frame
• Heavy-duty Alko coupler with handbrake
• Multi-function LED lights
• Numberplate holder and light
• Strengthened floor for loads
• Toggle catches on all side supports
• 8 inch adjustable jockey wheel



Dimensions
A Height (over all) 1400 mm
B Height (side) 600 mm
C Length (body) 3620 mm
D Length (over all) 5220 mm
E Width (inside) 1925 mm
F Width (over all) 2125 mm
G Ground Clearance 300 mm
Technical Info
Tare Mass 800 kg
GVM 2800 kg
Pay Load 2000 kg
Brakes Run-in and booster
Axle Length 1600 mm
Axle Capacity 2 x 2000 kg
Leaf Springs Rubber suspension
Wheels 195 x 14 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
