Mossie +Rails

Mossie +Rails.

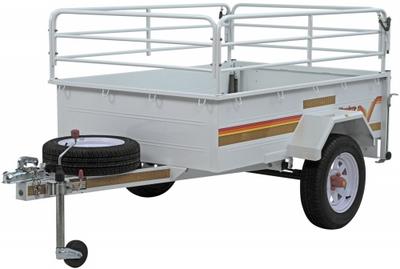

Side view

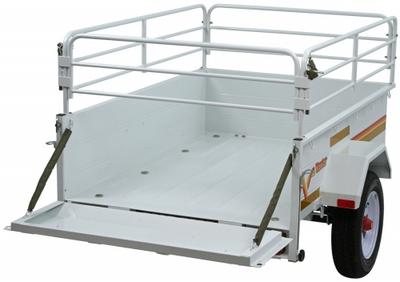

Back with tailgate down

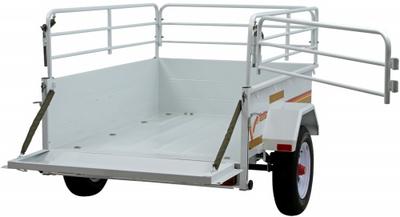

Back with tailgate and top open

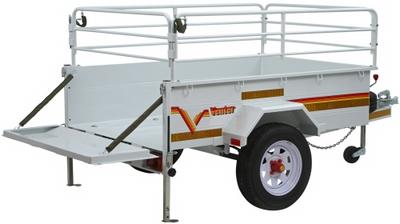

Support legs extended

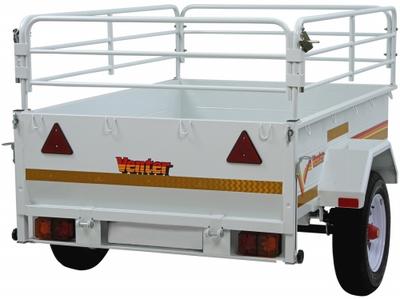

Back view

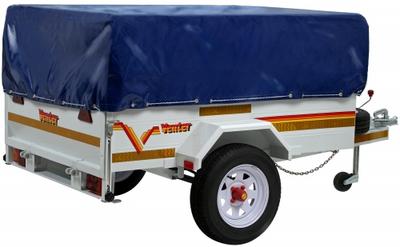

Back with cover

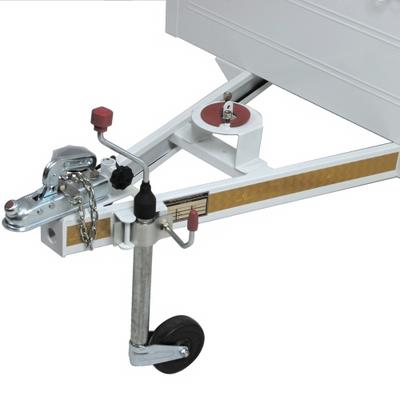

Spare wheel holder

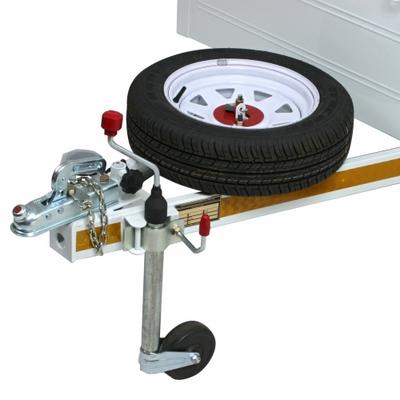

Spare wheel locked on holder

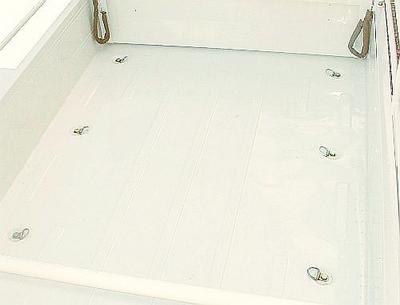

Floor tie-downs

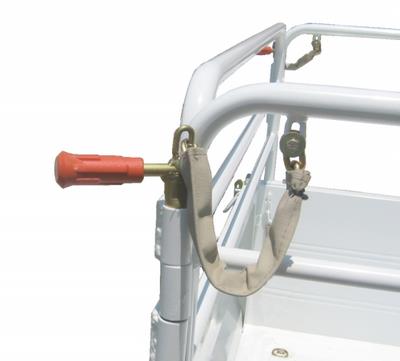

Back gate hinge handle





This trailer is the perfect all-rounder for all types of loads. Practical and functional it sports many features.

Features

1. A new deep body for more capacity
2. Durable axle with larger bearings
3. Rigid chassis and rigidised floor
4. New adjustable 6 inch jockey wheel
5. Hinged rails and tailgate for easy loading
6. Adjustable support legs on rear corners
7. Spare wheel and lockable spare wheel bracket
8. Tie-down lugs in the floor and on the body
9. Zinc galvanised or electro-galvanised steel body
10. Optional weather cover

Dimensions
A Height (over all) 1305 mm
B Height (side) 850 mm
C Length (body) 1850 mm
D Length (over all) 2835 mm
E Width (inside) 1290 mm
F Width (over all) 1700 mm
G Ground Clearance 260 mm
H Height (body) 430 mm
Technical Info
Tare Mass 160 kg
GVM 700 kg
Pay Load 540 kg
Brakes No Brakes
Axle Length 1450 mm
Axle Capacity 750 kg
Leaf Springs 4 Blade short 27 inch
Wheels 155 x 13 inch

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
