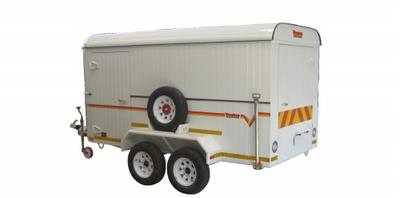

Traveller 10 SLK Tandem (braked)



Traveller 10 SLK Tandem (braked)

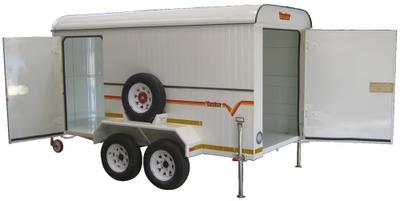

Back left view open

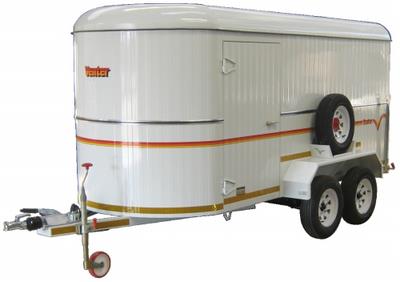

Back left view

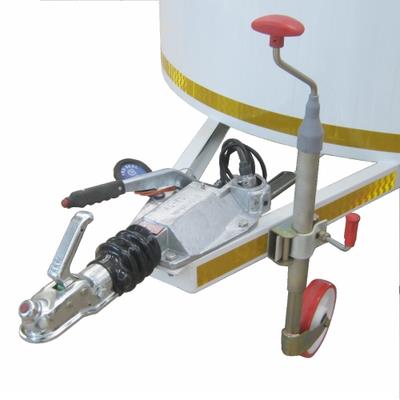

Coupler and jockey wheel

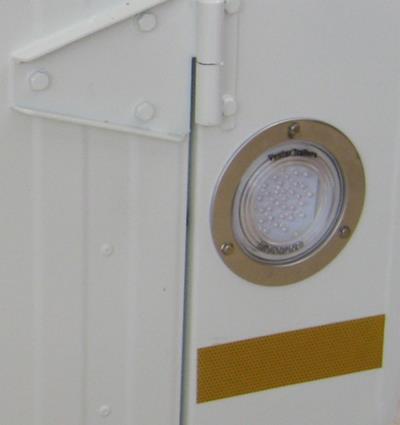

LED light

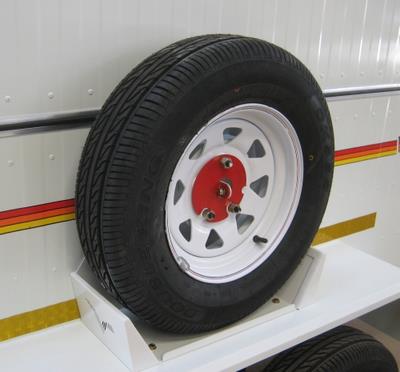

Spare wheel holder

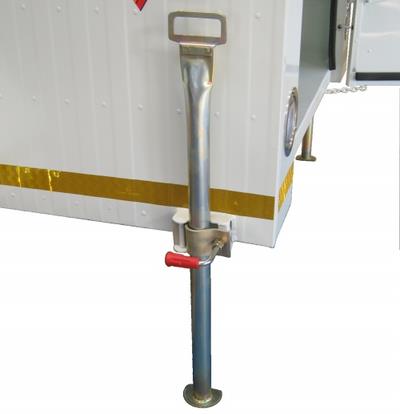

Support leg

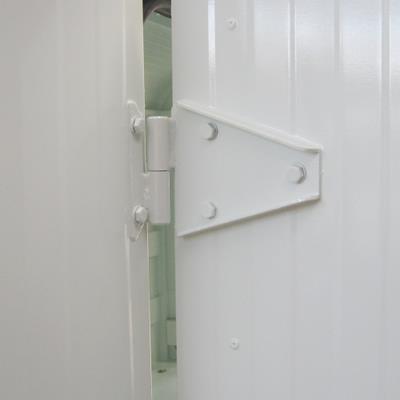

Heavy duty hinge

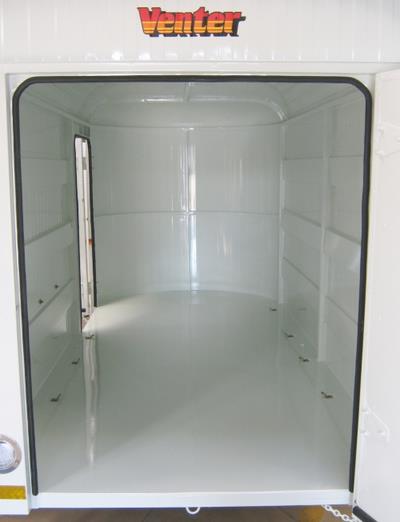

View inside





Traveller 10 SLK Tandem

Features

• Body and roof constructed from 0.9mm corrosion resistant electro-galvanised sheet steel.
• Doors are pad-lockable and can be found at the left side and the back of the trailer for easy loading.
• All doors are pad-lockable and equipped with new heavy-duty hinges for robust usage
• Heavy-duty hinges on all doors
• Sides are strengthened by formed hat-sections which prevents drumming and vibration.
• Two adjustable extending supporting back legs to provide levelling and stability when parked on uneven ground
• 9 x ring holders to tighten goods
• Multi-function LED lights
• Heavy-duty coupler
• Spare Wheel holder which is pad-lockable
• Fitted with run-in brakes for maximum safety
• Fitted with 2 Rubax axles.
• Adjustable durable jockey wheel 8 inch
• Including spare wheel 165×13 inch

Dimensions
A Height (over all) 2060 mm
B Height (side) 1660 mm
C Length (body) 3610 mm
D Length (over all) 4480 mm
E Width (inside) 1525 mm
F Width (over all) 2080 mm
G Ground Clearance 280 mm
Technical Info
Tare Mass 740 kg
GVM 1740 kg
Pay Load 1000 kg
Brakes Run-in
Axle Length 1890 mm
Axle Capacity 1500 kg x 2
Leaf Springs Rubax axle
Wheels 165 x 13 inch
Doors
Door (rear – height) 1330 mm
Door (rear – width) 1050 mm
Door (side – height) 1280 mm
Door (side – width) 730 mm

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
