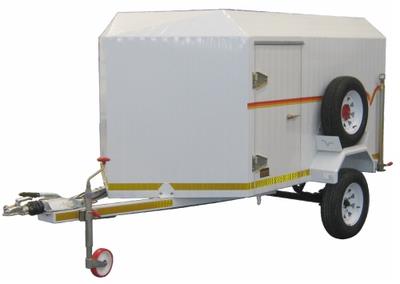

Traveller 8 Sputnik



Traveller 8 Sputnik

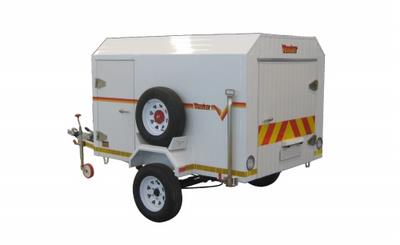

Back view

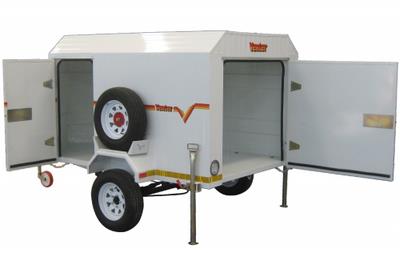

Back view open

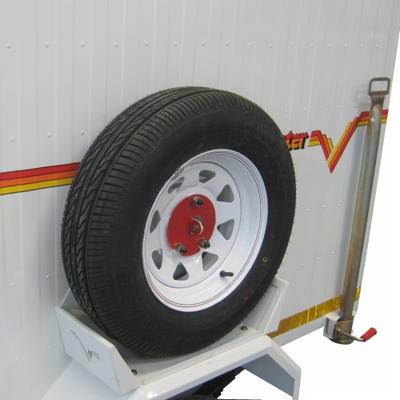

Spare wheel holder

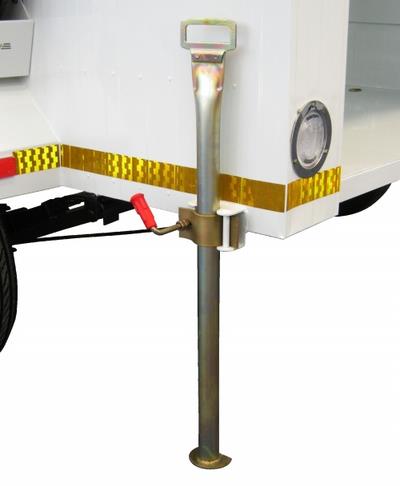

Adjustable support leg

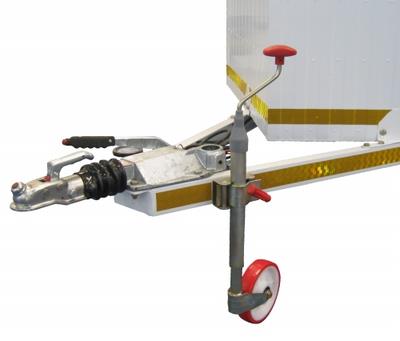

Coupler and jockey wheel

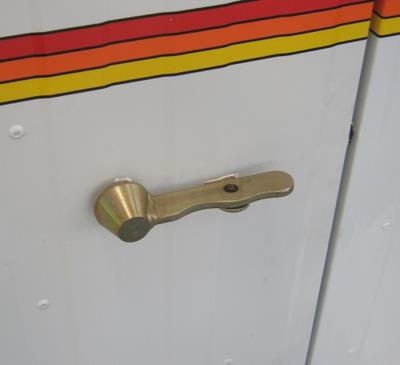

Pad-lockable door handles

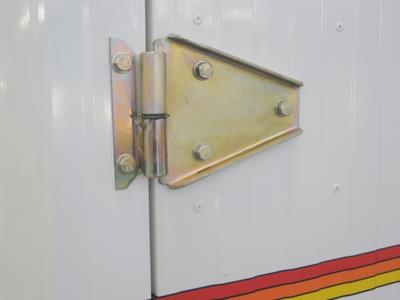

Heavy-duty door hinges

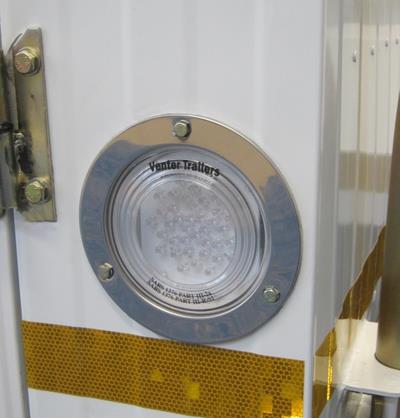

Multi-function LED light

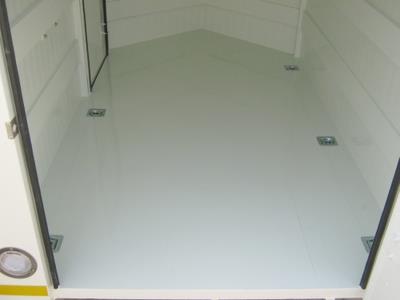

Five tie-down rings

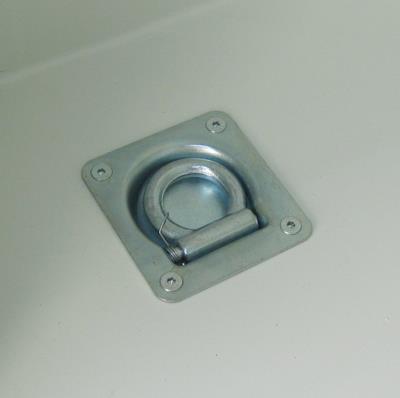

tie-down ring detail





Features:

• Designed for transportation of luggage, bulky goods, equipment, parcels etc.
• Body and roof constructed from 0.9mm corrosion resistant electro-galvanised sheet steel.
• Doors have heavy-duty robust hinges for longevity
• Pad-lockable spare wheel holder mounted on left mudguard
• Adjustable jockey wheel 8 inch
• Multi-function LED lights
• 5 x floor-recessed heavy-duty tie-down rings
• Adjustable rigid support legs for uneven ground
• Back and side door doors are pad-lockable.
• Sides are strengthened by formed hat-sections which prevents drumming and vibration.
• Including spare wheel 195×14 inch
• Heavy-duty coupler with brake

Dimensions
A Height (over all) 2200 mm
B Height (side) 1650 mm
C Length (body) 2960 mm
D Length (over all) 3860 mm
E Width (inside) 1525 mm
F Width (over all) 2050 mm
G Ground Clearance 260 mm
Technical Info
Tare Mass 560 kg
GVM 1525 kg
Pay Load 965 kg
Brakes Run – in
Axle Length 1830 mm
Axle Capacity 1800 kg
Leaf Springs 12 Blade
Wheels 195 x 14 inch 6 stud
Doors
Door (rear – height) 1330 mm
Door (rear – width) 1050 mm
Door (side – height) 1280 mm
Door (side – width) 650 mm

Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice.
