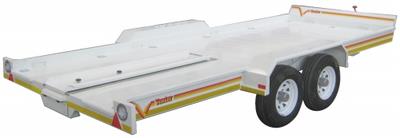

Back right view
|
|
 |
|

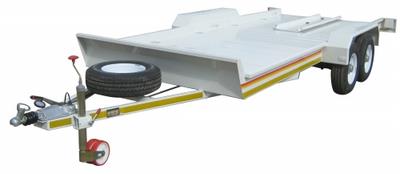

Back left view ramps down
|
|
 |
|

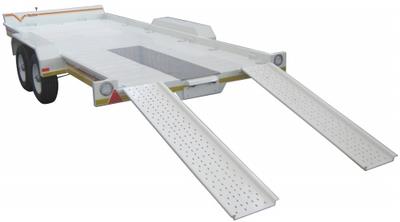

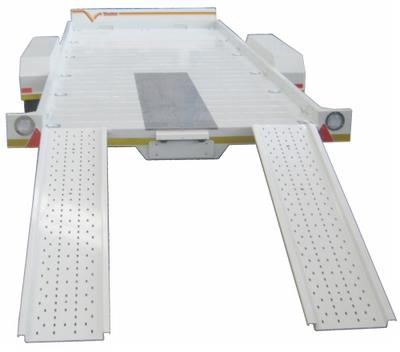

Rear view ramps down
|
|
 |
|

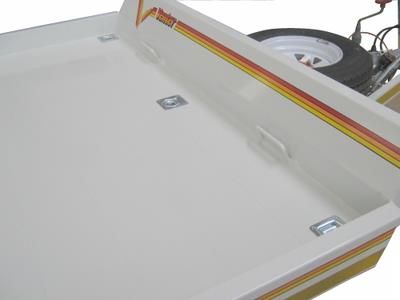

Front tie-down rings
|
|
 |
|

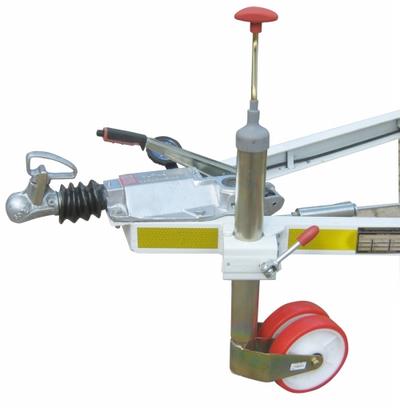

Double jockey wheel
|
|
 |
|

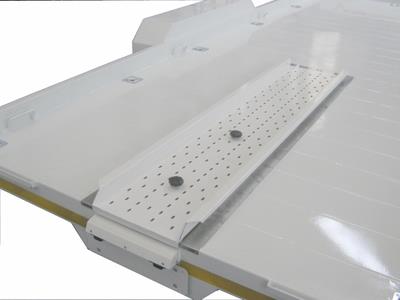

Ramp storage
|
|
 |
|

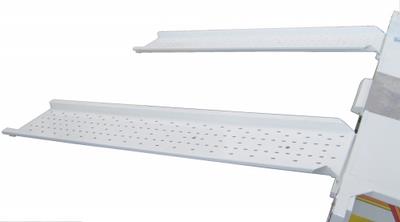

Ramp detail
|
|
 |
|

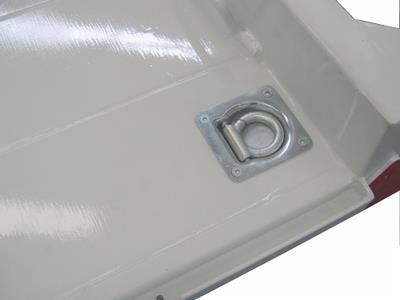

Retractable tie-down ring
|
|
 |
|

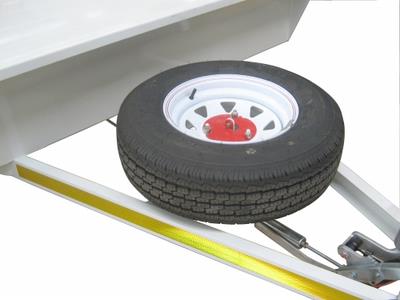

Lockable spare wheel bracket
|
|
 |
|

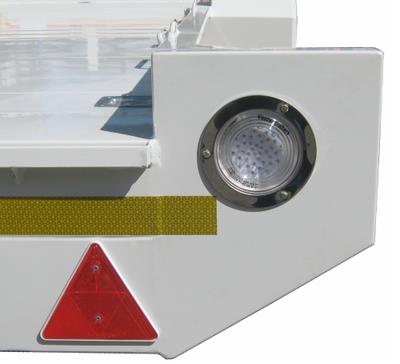

LED light detail
|
|
 |
|
Braked heavy duty coupler
|
|
|
|
|
|
Perfectly balanced, durable vehicle transporter.
1. Floor constructed from sectionalised 2.0mm zinc galvanized sheet steel.
2. Designed in a U shape for durability and strength.
3. Chassis and A-frame constructed from 76x38x mm rectangular tubing.
4. Tandem axles with independent Rubax suspension.
5. Fitted with override brakes for maximum safety.
6. Auto reverse coupler for easy manoeuvering of trailer.
7. Has 2 removable loading ramps for easy on/off loading, stored on the flatbed floor.
8. Trailer can also be utilised to transport furniture and heavy bulky items.
9. Heavy duty lashing hooks for securing vehicle on floor.
10. Including spare wheel 195×14 inch
11. Multi-function LED lights
12. Flush floor-mounted tie-down ring
|
|
|
| Dimensions |
| A |
Height (over all) |
660 mm |
| C |
Length (inside) |
5190 mm |
| D |
Length (over all) |
6530 mm |
| E |
Width (inside) |
1900 mm |
| F |
Width (over all) |
2500 mm |
| Technical Info |
| Tare Mass |
610 kg |
| GVM |
2350 kg |
| Pay Load |
1740 kg |
| Brakes |
Run-in brakes |
| Axle Length |
2295 mm |
| Axle Capacity |
1800 kg x 2 |
| Leaf Springs |
Rubber Axle |
| Wheels |
195 x 14 inch |
|
| |
| Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice. |
