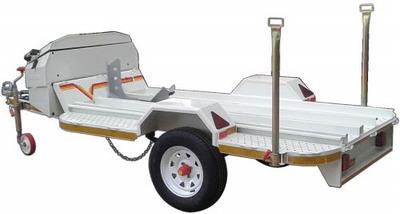

Back left view closed
|
|
 |
|
Back left view open
|
|
 |
|

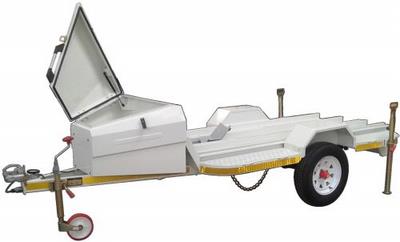

Front view nosecone open
|
|
 |
|

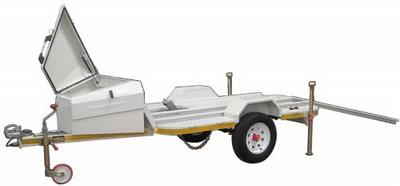

Front view ramp down
|
|
 |
|

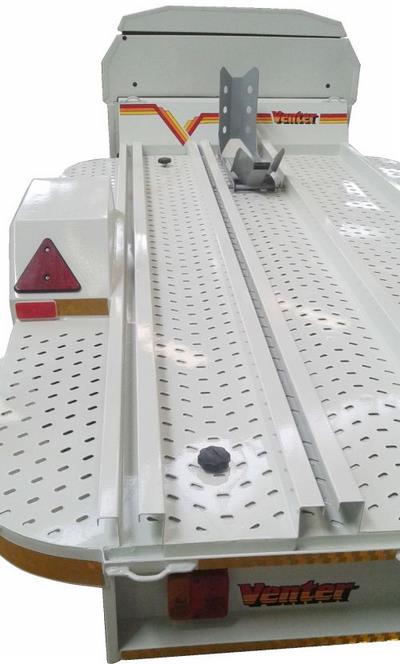

Back view of ramp
|
|
 |
|

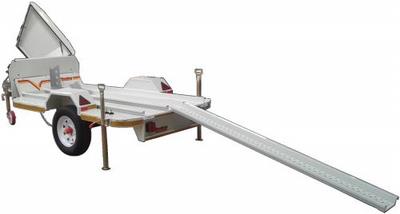

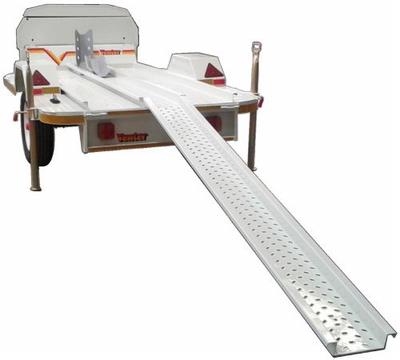

Back left view ramp down
|
|
 |
|
Ramp secured with Venterbolt
|
|
 |
|

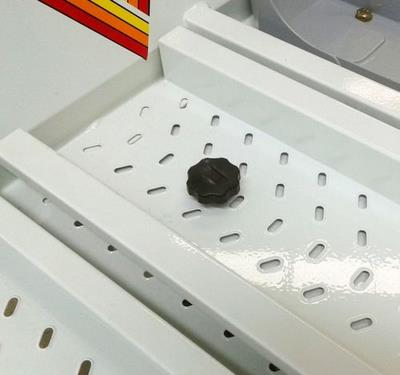

Venter bolt securing ramp
|
|
 |
|

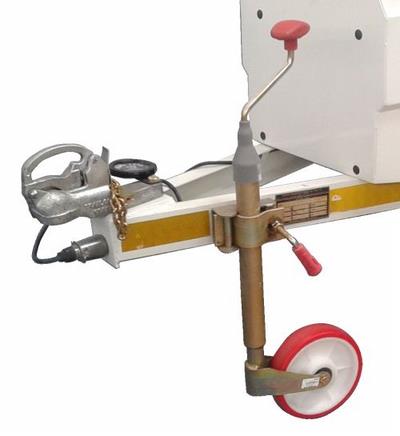

Coupler and jockey wheel
|
|
 |
|

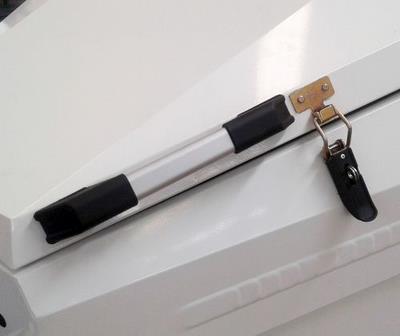

Handle and padlockable latch
|
|
 |
|

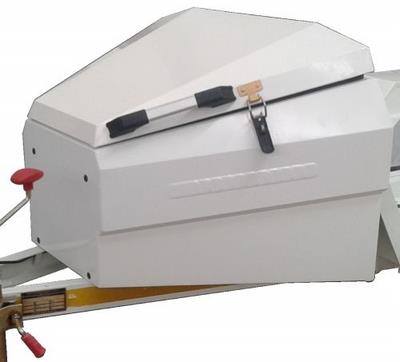

Large nosecone closed
|
|
 |
|

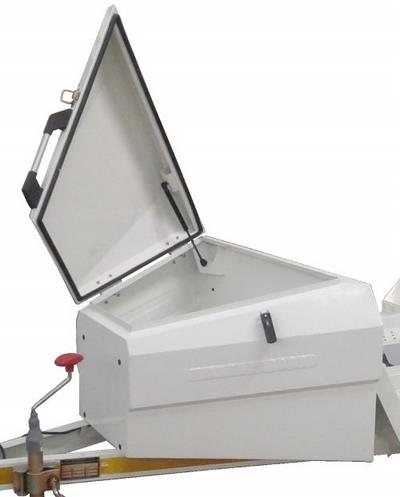

Nosecone lid gaslift assistedopen
|
|
 |
|

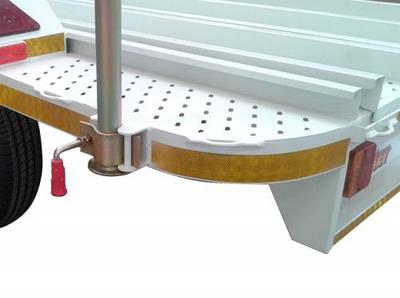

Leg support clamp and tie-down lugs
|
|
 |
|

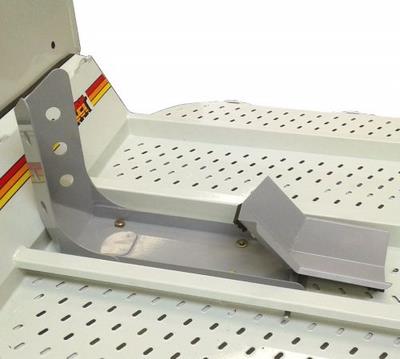

Bike front wheel clamp open
|
|
 |
|

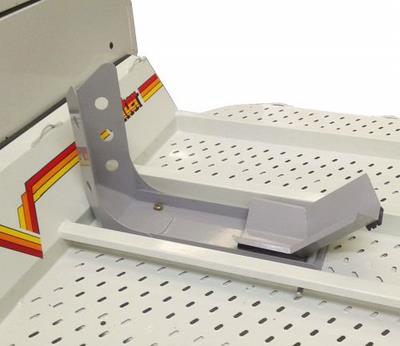

Bike front wheel clamp closed
|
|
 |
|

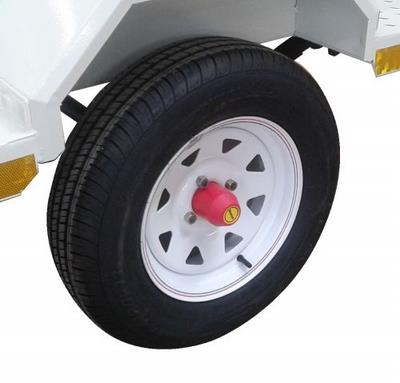

Wheel detail
|
|
|
|
|
|
Single Bike Trailer
Features
• Large padlockable nosecone
• Aluminium handle
• Plastic covered padlockable toggle catch
• Galvanised coupler with locking option
• 6 inch adjustable jockey wheel
• Two adjsutable support legs at the back
• Perforated trailer bed for grip and drainage
• Equipped with a handbrake chain
• Robust Bike ramp 2.3 metres long
• Bike ramp stores securely away on trailer floor
• Bike wheel bracket to capture the front wheel
• Rear numberplate and tail light recess
• Including spare wheel 165×13 inch
• Robust tie-down lugs in many positions
|
|
|
| Dimensions |
| A |
Height (over all) |
670 mm |
| B |
Height (side) |
140 mm |
| C |
Length (body) |
2300 mm |
| D |
Length (over all) |
3400 mm |
| E |
Width (inside) |
1000 mm |
| F |
Width (over all) |
1460 mm |
| G |
Ground Clearance |
220 mm |
| Technical Info |
| Tare Mass |
200 kg |
| GVM |
700 kg |
| Pay Load |
500 kg |
| Brakes |
No brakes |
| Axle Length |
1400 mm |
| Axle Capacity |
700 kg |
| Leaf Springs |
6 Blade |
| Wheels |
165×13 inch |
|
| |
| Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice. |
