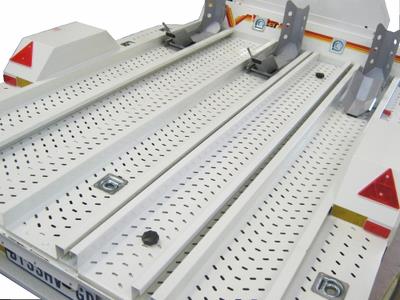

Back view with wheel brackets
|
|
 |
|

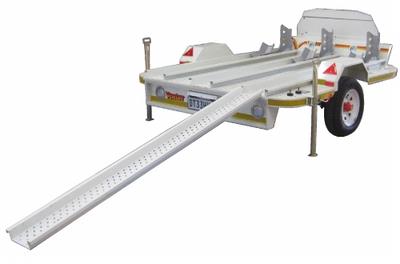

Back view ramp down
|
|
 |
|

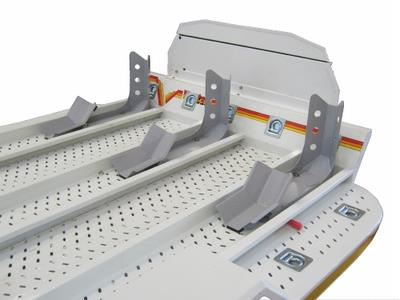

Wheel brackets
|
|
 |
|
Ramp secured on floor
|
|
 |
|

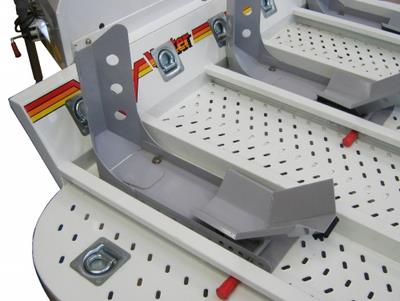

Wheel bracket detail
|
|
 |
|

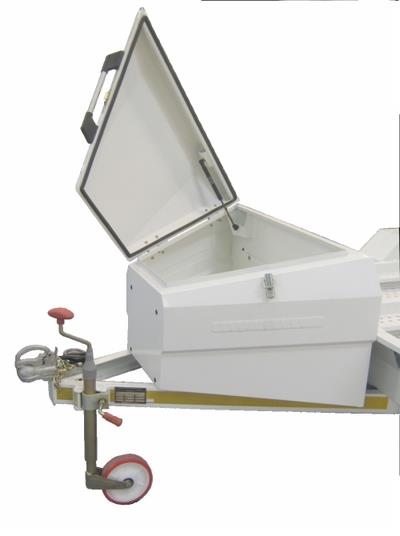

Nosecone open
|
|
 |
|

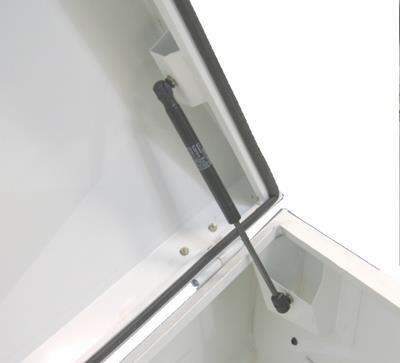

Nosecone gas lift
|
|
 |
|

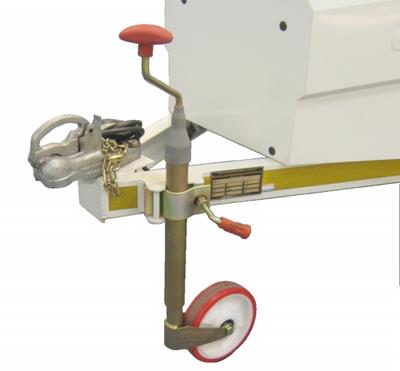

Jockey wheel
|
|
 |
|

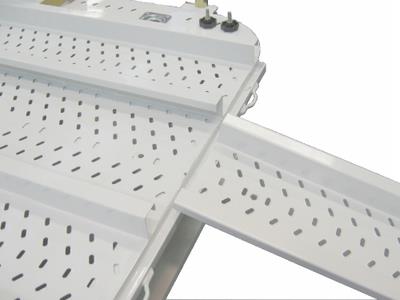

Ramp close-up
|
|
 |
|

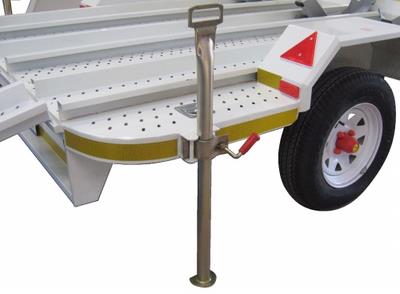

support leg
|
|
 |
|

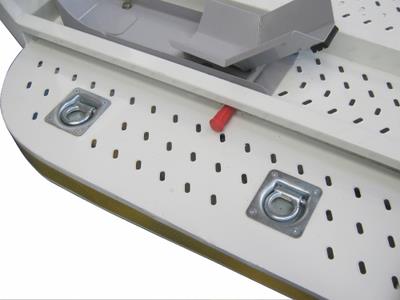

tie-down rings
|
|
|
|
|
|
Features:
• Perfectly balanced, yet light weight and robust
• Two adjustable support legs
• Recessed sprung tie-down rings on sides and front to secure bikes in transit
• Bikes loaded from the rear ,with a robust ramp
• Three front-wheel brackets to support bikes as standard fittings
• Ramp stores away on trailer floor with threaded knobs
• Solid floor with perforated tread holes
• Fitted with a lockable coupler(lock optional)
• Equipped with a handbrake chain
• LED tailights are protected
• Spare wheel mounted underneath trailer, at rear
• Spare wheel size – 165×13 inch
• Includes a pad-lockable nosecone
• Aluminium handle on nosecone lid
|
|
|
| Dimensions |
| A |
Height (over all) |
1110 mm |
| C |
Length (body) |
2320 mm |
| D |
Length (over all) |
3560 mm |
| F |
Width (over all) |
1980 mm |
| Technical Info |
| Tare Mass |
240 kg |
| GVM |
750 kg |
| Pay Load |
510 kg |
| Brakes |
No brakes |
| Axle Length |
1830 mm |
| Axle Capacity |
1250 kg |
| Leaf Springs |
10 Blade |
| Wheels |
165 x 13 inch |
|
| |
| Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Venter Trailers reserves the right to alter design and specifications without prior notice. |
